About:

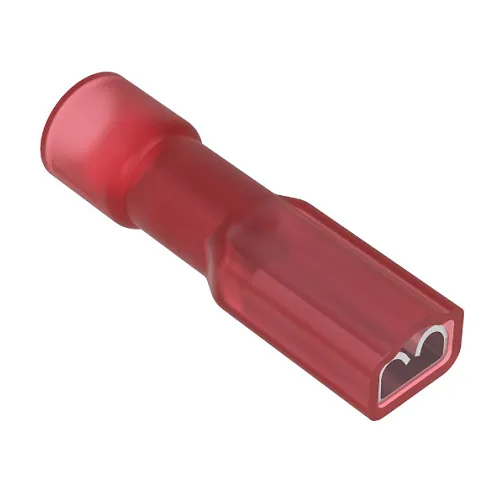

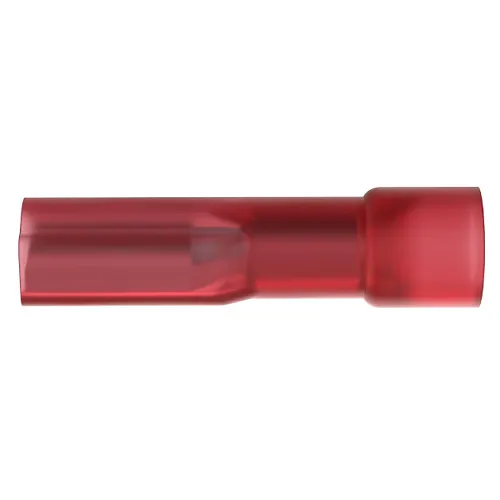

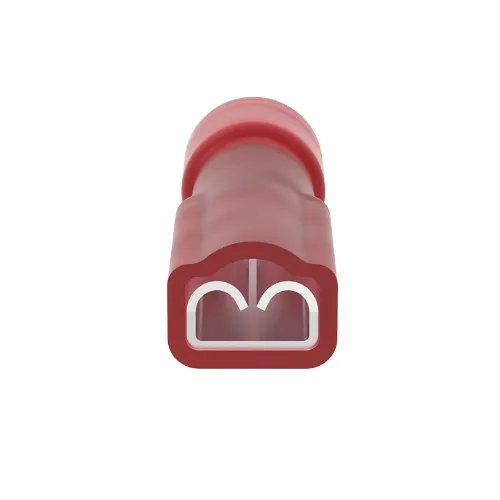

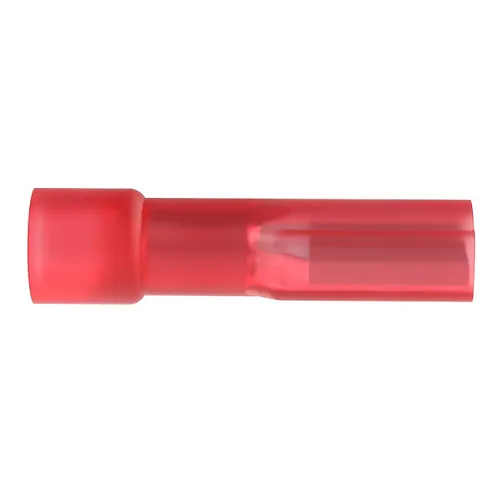

The DNF18-110FIB-C is a specialized Pan-Term Female Disconnect developed by Panduit. Specifically tailored for 22-18 AWG wires and featuring a 0.19-inch width, this connector ensures a secure, yet detachable connection. With its nylon insulation, it offers both safety and durability. This model is sold in packs of 100, making it suitable for bulk installations or large-scale projects.

Also Known As:

• DNF18 Female Spade Connector
• Pan-Term 0.19" Female Quick Disconnect
• Panduit 22-18 AWG Nylon Insulated Disconnect

Common Applications:

• Household appliances requiring detachable connections
• Control panel assemblies, ensuring secure connections that can be detached when necessary
• Electrical installations where 22-18 AWG wires are predominant
• Equipment in industries like telecommunications, data centers, and more
• Automotive applications, particularly in areas where regular maintenance or inspection might be required

Standards:

• Match industry standards for electrical conductivity and insulation
• Comply with RoHS or similar environmental safety standards
• Adhere to UL and CSA electrical connector standards

Construction:

• Designed to accommodate 22-18 AWG wires specifically
• A nylon insulation layer ensures a safe connection and protects against potential short circuits
• Terminal connector made of a conductive metal, often brass or copper
• Might feature tin or another type of plating to ensure enhanced conductivity and reduce the chances of oxidation

Features:

• Resistant to environmental factors, oxidation, and corrosion
• The ease of detachment and reconnection, offering flexibility in installations and maintenance
• Secure and reliable connection tailored for 22-18 AWG wires
• Nylon insulation provides a layer of safety and durability
• Pack of 100 for bulk or large-scale projects
