About:

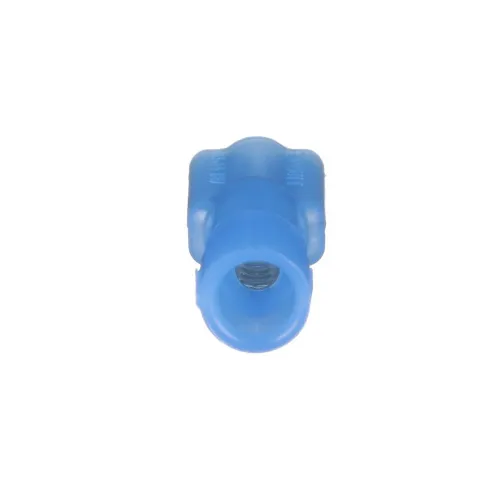

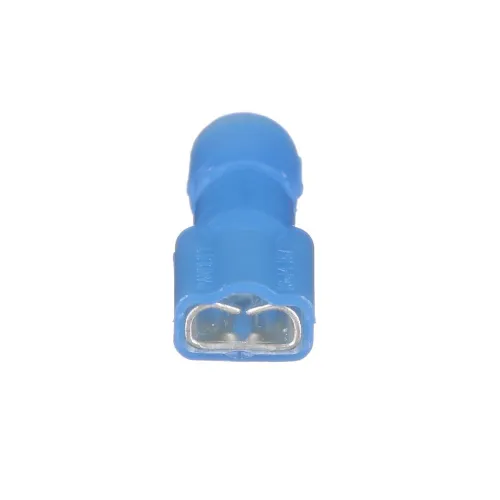

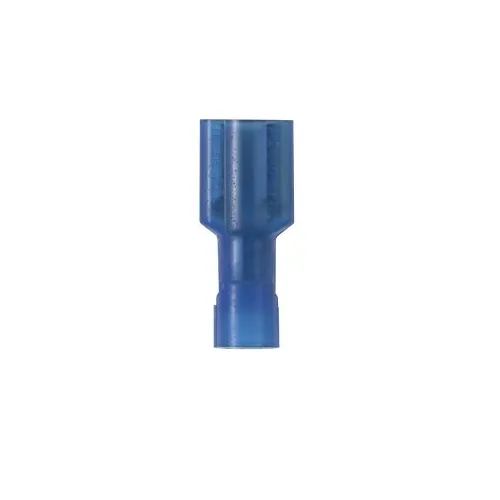

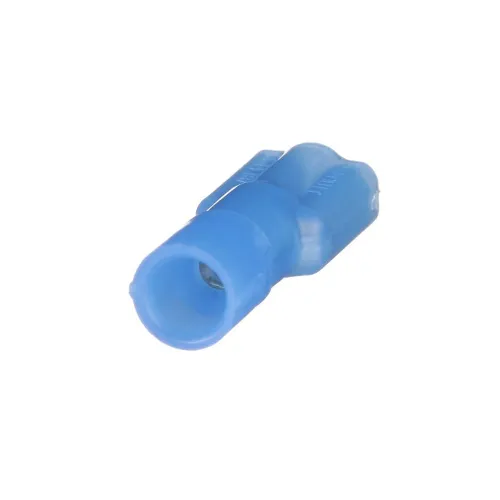

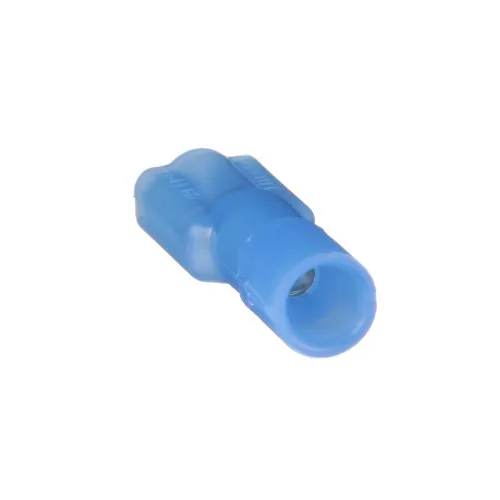

This product is a female disconnect terminal, designed to establish secure electrical connections. With its AWG (American Wire Gauge) specification of 16-14, this disconnect is aimed at medium-sized wire diameters. Falling under the "Pan-Term" brand, this component is available in packs of 100 units. The nylon insulation plays a critical role in providing an additional layer of safety, shielding against short circuits and inadvertent metal contacts.

Also Known As:

• Female Slip-On Connector
• Spade Terminal
• Quick Disconnect Terminal

Common Applications:

• Residential electrical appliances
• Industrial machine and equipment wiring
• Automotive electrical systems
• Wiring for electronic devices
• Interconnections in control panels and switchgears

Standards:

• UL (Underwriters Laboratories)
• CSA (Canadian Standards Association)
• RoHS (Restriction of Hazardous Substances) compliance

Construction:

• Connector Body: Generally crafted from brass or another conductive material, ensuring optimal electrical conductivity.

• Insulation: Made of nylon, which offers electrical insulation and a measure of mechanical protection.

• Plating: The conductive body might be coated with tin to offer protection against corrosion and to ensure a stable, reliable connection over time.

Features:

• Nylon Insulation: Provides a safeguard against potential short circuits and unintentional metal contacts.

• Easy Crimping Process: Designed for straightforward and reliable wire attachment, primarily using a crimping tool.

• Durability: Built to endure regular wear and tear, guaranteeing a prolonged, consistent connection.

• Operational in Various Temperatures: Functions effectively over a diverse range of temperatures, accommodating a variety of environmental conditions.

• Compatibility: Specifically designed for wire gauges in the 16-14 AWG range, ensuring adapt ability across various wiring tasks.

Specification:
