About:

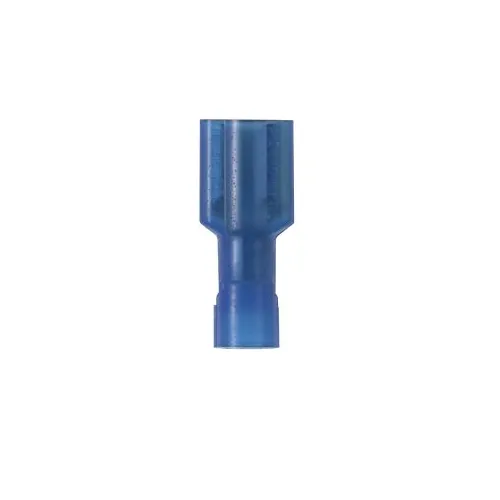

This product is a female disconnect terminal, purposed to ensure firm and stable electrical connections. With a specification tailored for 16-14 AWG (American Wire Gauge), it suits medium-sized wire diameters. As a member of the "Pan-Term" collection, this component is available in bulk, with packs of 1000 units. The key feature of nylon insulation offers an added layer of safety, mitigating risks associated with short circuits and unintentional metal contacts.

Also Known As:

• Female Slip-On Connector
• Spade Terminal
• Quick Disconnect Terminal

Common Applications:

• Domestic electrical appliances
• Industrial equipment and machinery wiring
• Automotive electrical systems
• Electronics circuit connections
• Connection hubs in control panels and switchgear systems

Standards:

• UL (Underwriters Laboratories)
• CSA (Canadian Standards Association)
• RoHS (Restriction of Hazardous Substances) compliance

Construction:

• Plating: The metallic body of the connector might be coated with tin to prevent corrosion and guarantee a durable, consistent connection.

• Insulation: Made from nylon, it delivers electrical insulation alongside a degree of mechanical protection.

• Connector Body: Predominantly crafted from brass or another conductive alloy to ensure optimal electrical transmission.

Features:

• Nylon Insulation: Essential for preventing potential short circuits and unwanted metal contacts.

• User-friendly Crimping: Structured for an effortless yet reliable wire attachment, typically achieved with a crimping tool.

• Durability: Manufactured to withstand regular usage, ensuring a persistent connection.

• Broad Temperature Tolerance: Engineered to operate efficiently across an expansive temperature range, suitable for diverse environments.

• Compatibility: Precisely designed for wire gauges within the 16-14 AWG range, ensuring adaptability for various wiring requirements.
