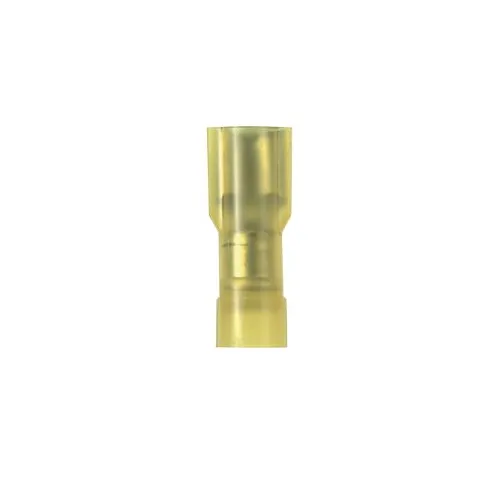

0.35 12-10 AWG Pan-Term Female Disconnect Nylon Insulated DNF10-250FIB-L (Pack of 50)

0.35 12-10 AWG Pan-Term Female Disconnect Nylon Insulated DNF10-250FIB-L (Pack of 50)

$ 45.02

$ 54.03

Save: $ 9.01

Title:
  • DefaultTitle
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

[pdf] [/pdf]

About:

The DNF10-250FIB-L is a Pan-Term Female Disconnect terminal designed specifically for wire terminations falling within the 12-10 AWG range. With its nylon insulation, it offers an additional layer of protection against potential electrical issues and maintains insulation resistance. This model comes in a more limited quantity, with a pack containing 50 pieces, making it suitable for smaller projects or specialized applications.

Also Known As:


 Female Spade Terminal
Female Quick Disconnect
 Nylon Crimp Terminal

Common Applications:

 Electrical circuits in industrial equipment.
 Electronic devices and domestic appliances.
Electrical systems in automobiles.
 Electrical control panels and power distribution units.
 HVAC electrical connections.

Standards:


 RoHS (Restriction of Hazardous Substances) directives.
UL (Underwriters Laboratories) safety standards.
 CE markings, indicating adherence to European standards.

Construction:

Terminal Body: Typically constructed from tinned or plated brass or copper to ensure efficient electrical conduction.

 Insulation: Made of nylon, which offers electrical insulation and protects the connection from external influences.

• Crimp Barrel: The area into which the wire is introduced and crimped, ensuring a tight and secure connection between the wire and the terminal.

Features:

• Versatile Wire Range: Tailored for 12-10 AWG, offering flexibility in various applications.

• Nylon Insulation: Supplies electrical insulation and enhances pull-out strength.

Quick Disconnect Design: Provides easy and reliable connection and disconnection.

• Identifiable: The color-coding (often yellow for 12-10 AWG) allows for swift identification of wire gauge compatibility.

 Sturdy Construction: Impervious to common solvents, oils, and other corrosive materials.



Specification:

Disconnect Type Female Disconnect
Insulation Material Nylon
Insulation Type Fully Insulated
Maximum Copper Conductor Size (AWG) #10
Maximum Wire Size (AWG) #10
Minimum Wire Size (AWG) #12
Wire Strip Length 3/8 In.
Tab Size  0.250 x 0.032 In.
Maximum Voltage 600 V
Base Material Brass
Finish/Coating Tin-Plated
Color Code Yellow
Barrel Type Funnel
Flammability Rating UL94-HB
Maximum Operating Temperature (°C) 105
Sub Brand Pan-Term
Maximum Metric Conductor Size  6 (mm²)
Minimum Metric Conductor Size  (mm²)
Maximum Wire Insulation Diameter 0.22 In.
Overall Height 0.23 In.
Overall Length  0.96 In.
Overall Width  0.35 In.
Tongue Angle Straight
Packaging Type Bottle
Product Type Disconnect
Maximum Voltage  0.6 (kV)
Part No DNF10-250FIB-L
